| This page presents additional information on the MAD ROBOT | ||
 |
 |
|

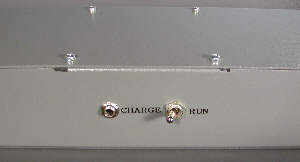

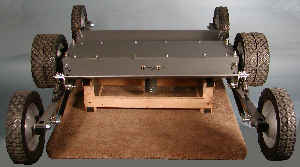

| MAD ROBOT, upside down | Close up of MAD ROBOT "Control Panel" showing the battery charging port and power switch. | |
 |
 |
|

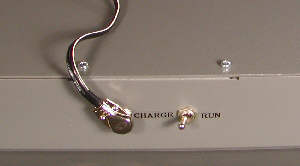

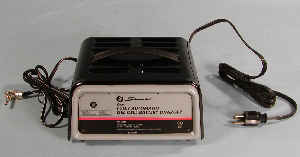

| Battery charger, modified for use with MAD ROBOT | Charger cable connected to charging port. (The MAD ROBOT is normally NOT turned upside down to make this connection. | |
 |
||

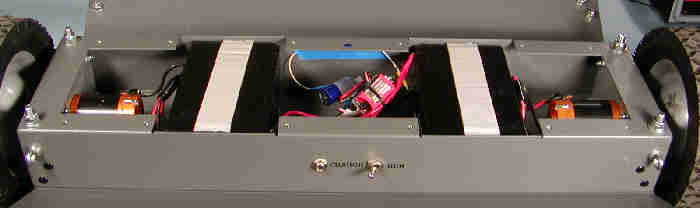

| Maintenance panel removed to show interior of MAD ROBOT. Note the two motor/gearcase assemblies and the two 12V Sealed Lead-Acid batteries. The R/C radio receiver and the motor control circuitry are located in the center section. | ||
|
